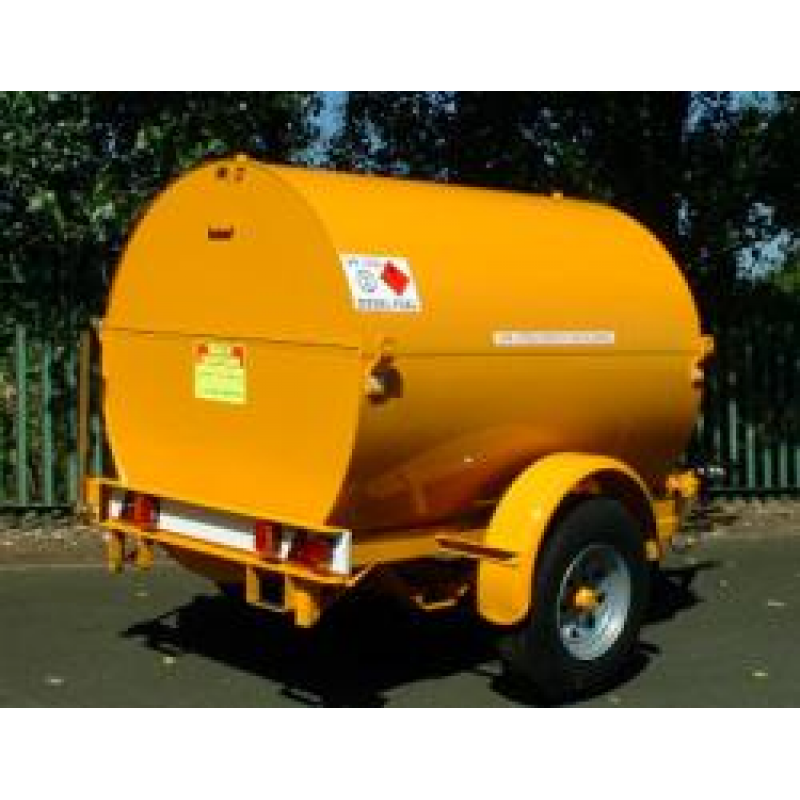

New 2140 litre U.N. Approved Bunded Diesel Highway Bowser

Chassis

Constructed from 100 x 50 RSC fully welded with front standing plate and ‘A’ frame drawbar.

Axle/Suspension

Avonride 3000kg rubber torsion beam fitted with Knott 300 x 60 auto reverse brakes operated via cables and rod.

Wheels and Tyres

2 No 235/85 x 16 x 12 ply radials fitted to 5 stud rims

Coupling

Knott 3000kg posibrake over run auto reverse c/w. Spring assisted handbrake lever, breakaway cable, 40mm ring eye.

Ancillary Equipment

Rolled steel mudguards, rear support stand, telescopic front jockey wheel, full road lighting c/w 7 pin plug.

Outer Bund Tank

Cylindrical in section with removable top section for tank access. Rear access door, fitted with stainless steel hinge and fully lockable.Bund contains 110% of tank inner tank content.4 lifting eyes. Fork sockets for use when tank not fitted in chassis.

Inner Fuel Tank

Constructed from translucent heavy duty Polyethylene 2” filler cap and chain. 2” vent valve, top mounted ½” BSP suction and return connections. Ball valve in base of tank to pump with secondary in line. P.R.V. in tank top

Pump

K2 semi rotary hand pump fitted with 15’ of 1” hose C/w trigger nozzle and stowed on bracket. In line ‘Y’ strainer. All contained within lockable bund area.

Finish

Primer and two top coats, single British Standard colour.

Dimensions

Width: 1.981m (78”)
Length: 3.684m (145”)
Height: 1.981m (78”)
Laden Max: 2800kg
Towing Height (level): 590mm
Unladen Weight: 850kg
