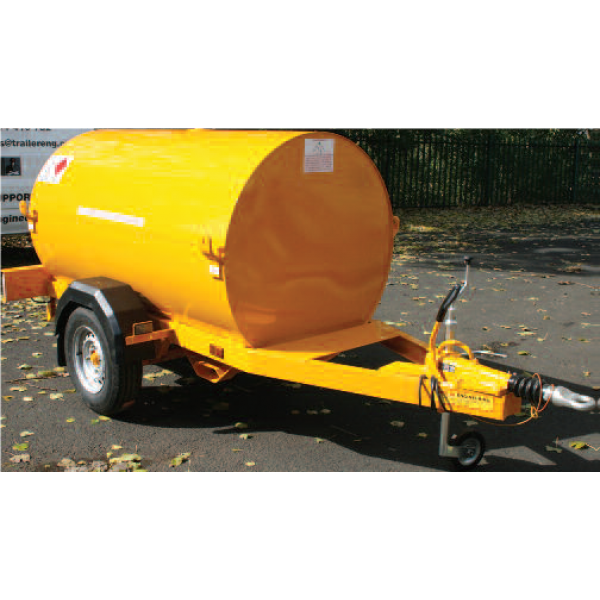

New 950 Litre U.N. Approved Bunded Diesel Highway Bowser

Chassis

Constructed from 100 x 50 RSC fully welded with front standing plate and ‘A’ frame drawbar.

Axle/Suspension

Single Avonride torsion beam axle and fitted with 200 x 50 Auto reverse brakes on 4 stud 5 ½”pcd hubs

Wheels and Tyres

2 No 175 x 13 x 8 ply radial tyres fitted to 4 stud 5 ½” pcd rims.

Coupling

Knott 2000kg posibrake over run auto reverse c/w spring assisted handbrake lever, breakaway cable & 40mm ring eye or 50mm ball.

Ancillary Equipment

Moulded mudguards, rear support stand,telescopic front jockey wheel, full road lighting c/w 7 pin plug.

Outer Bund Tank

Cylindrical in section with removable top section for tank access. Rear access door, fitted with stainless steel hinge and fully lockable.Bund contains 110% of inner tank. 4 lifting eyes & fork truck sockets.

Inner Fuel Tank

Constructed from translucent heavy duty polyethylene with a capacity of 980 Litres. 2” filler with cap & chain. 1” vent valve, ½” top mounted suction & return connections. P.R.V. in tank top. Bottom outlet valve.

Pump

K1 semi rotary hand pump c/w in line ‘Y’ strainer15’ of hose & trigger nozzle

Finish

Primer and two top coats, single British Standard colour.

Dimensions

Width: 1.550m (61”)
Length: 3.555m (140”)
Height: 1.524m (60”)
Laden Weight: 1500kg
Unladen Weight: 476kg
Towing Height (level): 560mm

Write a review

Note: HTML is not translated!
    Bad           Good

950 Litre U.N. Approved Bunded Diesel Highway Bowser

ENQUIRE ABOUT THIS PRODUCT

Call Us

01282 219130 - 07754 660351 - 07708 577100

UK Delivered

We deliver all over the United Kingdom

  • Product Code: 950LBundedDieselHighwayBowser
  • Availability: 1
  • £0.00

Hand Built

We hand build using grade 43A steel, using all UK specifications, requirements and legislations.

Strong and Safe

We use dye pen tests throughout the manufacturing process and pressure tested @ 1.2 bar.

Unlimited Colors

Our tanks are made in our standard blue colour but are available in a variety of colours, just ask.

UK Delivered

We deliver our Bunded fuel tanks all over the United Kingdom, whatever the shape or size you order.
