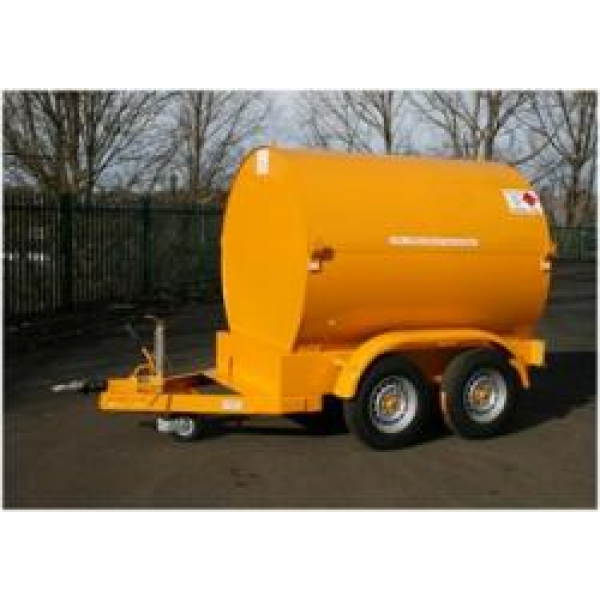

Constructed from 100 x 50 RSC, with 5mm pressed channel section, fully welded with ‘A’ frame drawbar & front standing plate, pressed rear lighting channel.

Running Gear

Avonride twin 1500Kg torsion beams fitted with 200 x 50 Auto Reverse brakes, Gas strut assisted parking brake,break away cable, Knott 3000 Kg Auto reverse coupling fitted with 40 mm eye or 50 mm ball. 4 No 185 x 13 x 8 ply radial tyres on 4 stud 5 1/2” pcd rims, Tandem mudguards, Telescopic front jockey wheel. Full road lighting c/w 7 pin plug.

Outer Bund Tank

Cylindrical in section with removable top section for tank access. Rear hinged access door fitted with stainless steel hinge. Bund contains 110% of tank content

Inner Fuel Tank

Constructed from translucent heavy duty polyethylene, baffled, 2” filler cap & chain. 2” vent valve, P.R.V.in tank top, 1/2” bsp suction & return in tank top, Ball valve in base of tank to pump .K2 semi rotary pump c/w 15ft of 1” diesel hose & trigger nozzle stowed on bracket. In line ‘Y’ strainer. All contained within lockable bund area.


Primer & two top coats in single British Standard colour


Width: 1.790m(70.1/2”)
Length: 3.582m (141”)
Height: 1.930m (76”)
Unladen weight: 900kg
Gross weight: 3000kg
Towing Height (Level): 394mm
Variations in towing height +25mm to -45mm

Hand Built

We hand build using grade 43A steel, using all UK specifications, requirements and legislations.

Strong and Safe

We use dye pen tests throughout the manufacturing process and pressure tested @ 1.2 bar.

Unlimited Colors

Our tanks are made in our standard blue colour but are available in a variety of colours, just ask.

UK Delivered

We deliver our Bunded fuel tanks all over the United Kingdom, whatever the shape or size you order.
