Piusi Cube 90 Electric Diesel Transfer Pump

Example tank picture

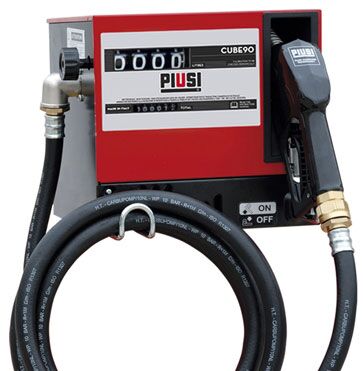

Piusi Cube 90 Electric Diesel Transfer Pump

20 year guarantee on all bunded fuel tanks

20 Years Guarantee

We are proud of our products and confident enough to provide a long standing guarantee.

delivery of bunded fuel tanks

Delivery upon request

We try to accommodate all of our customers, regardless of location, the best possible delivery service at the most competitively sourced prices.

bunded fuel tanks made in the uk

Made in the UK

All fuel tanks manufactured here at Fuel Safe UK comply with the UK’s safety regulations and are suitable for safe fuel storage.

Reviews by our clients

Description

About the product

The Piusi Cube 90 electric diesel transfer pump has been developed to have a higher flow and is therefore a 90lpm version of the industry renowned Piusi Cube 56 & Cube 70 Fuel Dispensers. Thanks to its quicker dispensing performance, this refuelling pump is designed for filling larger vehicle tanks and therefore, rather than coming with a K33 flow meter, comes with a K44. The K44 is a four digit mechanical flow meter used for refuelling large vehicles, where a four digit amount of fuel is more likely to be dispensed in a single transaction. This Piusi electric fuel transfer pump also comes with an Auto 120 nozzle, due to the pump being too quick for use with the standard Auto 60 or Auto 80 nozzle. This fuel dispenser comes with an in-built nozzle holder with a pump start lever and automatic pump stop functionality when the nozzle is returned, making operating the pump an easy process.

This Italian manufactured Piusi diesel pump unit, allows fast and safe refuelling of large vehicles, whilst measuring the quantities of fuel being dispensed. Similarly to the Cube 56 and 70, the Cube 90 can be installed on drums with the optional 2” quick coupling, or can be mounted free standing using a pedestal. A wall support kit is also available in order to fit the Cube 90 refuelling pump onto a wall or side of a fuel storage tank.

Please note: The Cube 90 has a 30 minute on, 30 minute off duty cycle

Features of the Cube 90 Diesel Fuel Transfer Pump:

  • Fully enclosed fuel dispenser
  • 230v diesel transfer pump
  • Mechanical seal & incorporated bypass valve
  • Flow Rate 90ltrs Per Min
  • Automatic nozzle & 4m x 1″ Delivery Hose
  • 4 Digit Flow Meter
  • Nozzle holder with pump start/stop lever
  • Protection grade: IP55 (Internal Motor)
  • Various mounting options available
  • 30min duty cycle
